Automatic switching of five functions: utility bypass, utility charging, solar charging, irerter and UPS. Built in MPPT / PWi solar charging controller (controller power 40 / 60A optional). Pure sine wave output is suitable for various loads. Low power energy saving mode. Solar power generation and electricity supply, battery free switching each other.
Product Description

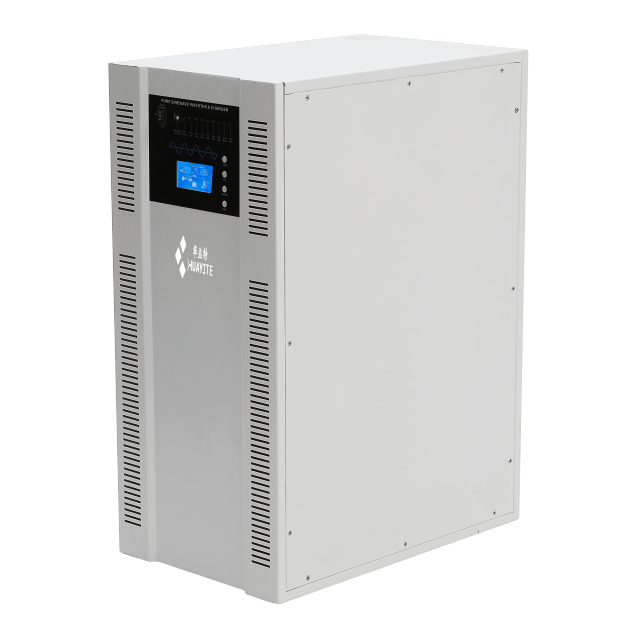

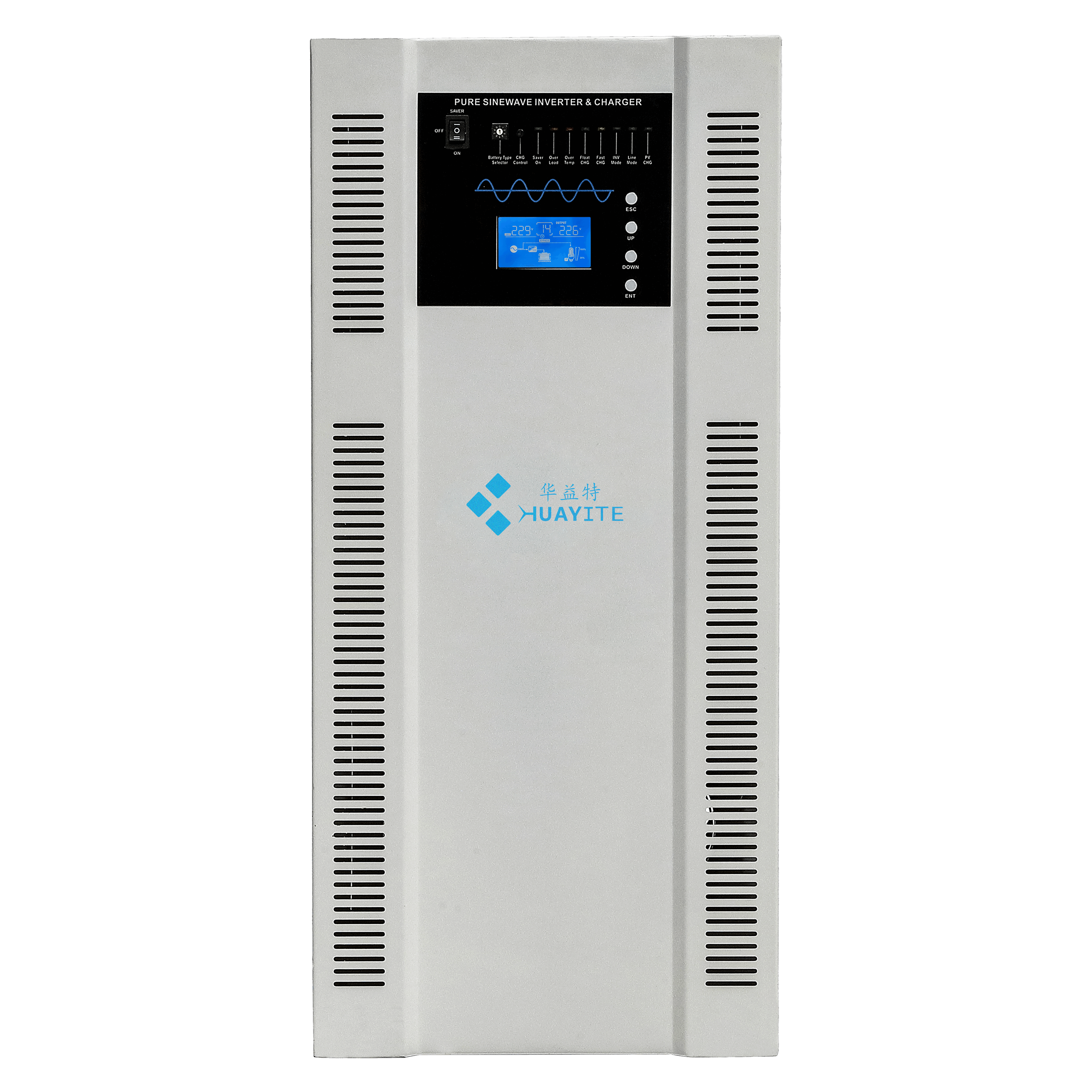

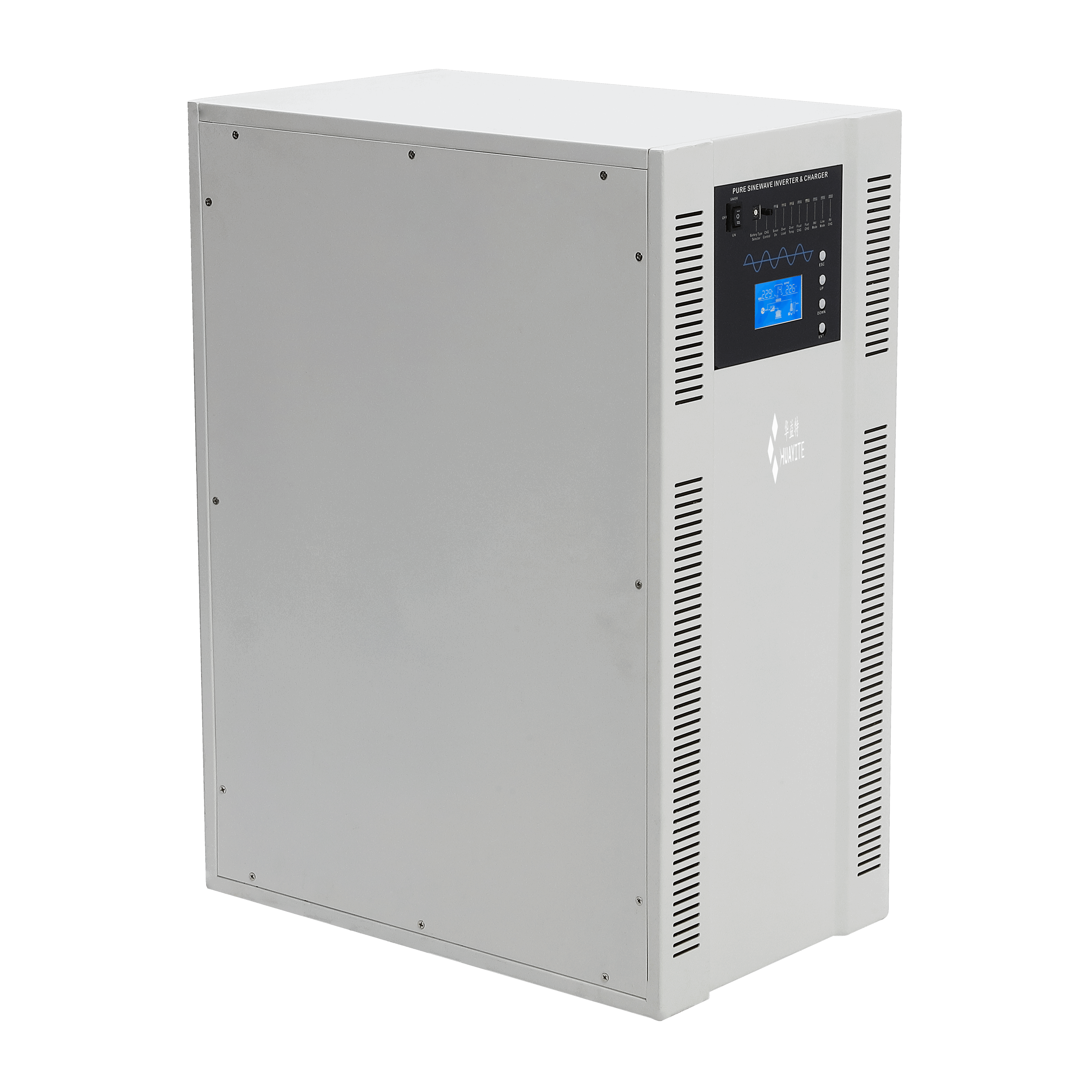

This off-grid vertical low frequency inverter with built-in MPPT controller is designed for integration into off-grid solar power systems where combined power inversion and solar charge control are required. It targets remote locations, rural applications, and small to medium solar installations where uninterrupted power and flexible source switching are necessary. Its multifunction capability suits procurement for projects needing both inverter and charge controller in one unit.
Equipped with an integrated MPPT/PWM solar charge controller, the device supports power ratings from 1.0KW up to 12.0KW. It delivers a pure sine wave output suitable for common electrical loads, with nominal battery voltages of 12V, 24V, or 48V depending on the model. Features include automatic power source switching, LED and LCD displays for system monitoring, and options for remote communications via WIFI or 4G. The inverter provides surge power capacities up to 36000VA on higher models, aligning with industrial protection standards.

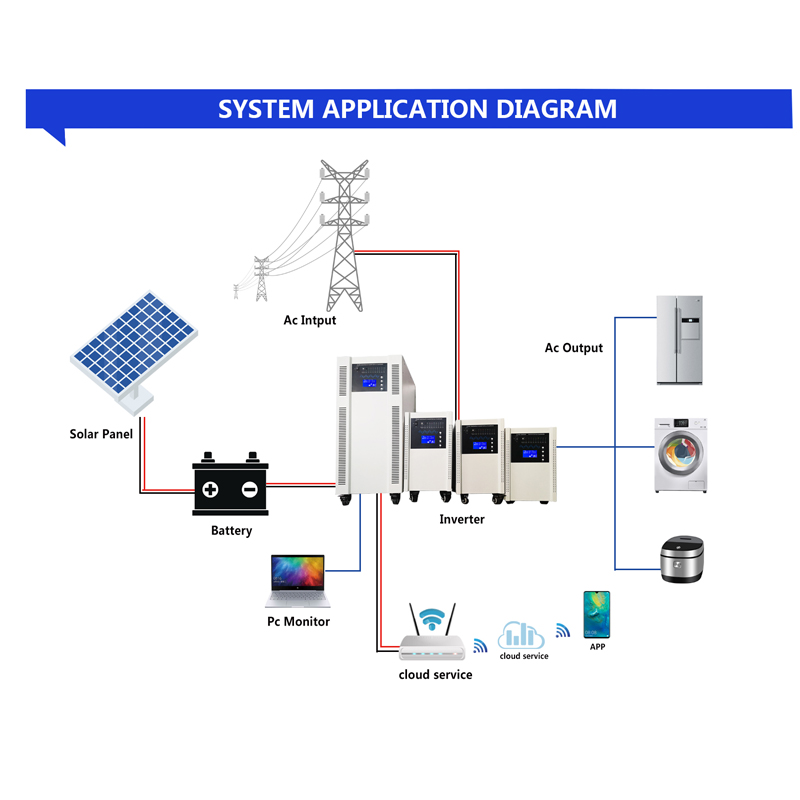

This inverter is practical in off-grid residential solar setups, agricultural operations, or remote energy systems requiring reliable power conversion and battery management. Its compact vertical form supports installation in constrained spaces. The integrated UPS function allows critical loads to maintain power during source changes. Energy-saving modes and intelligent solar priority contribute to system efficiency in demanding environments. The device also facilitates OEM/ODM customization for volume procurement and deployment in varied turnkey solar projects.
The combined inverter and built-in MPPT solar charger reduce system component count, simplifying procurement and installation. Vertical compactness aids tighter space utilities, while multi-interface options provide flexibility for integration with monitoring and control systems. A two-year warranty adds procurement confidence, supporting after-sales considerations for bulk buyers. Packaging and weight are described for handling logistics and distribution planning.
| MODEL | HV-PV1000W | HV-PV2000W | HV-PV3000W | HV-PV4000W | HV-PV5000W | HV-PV6000W | HV-PV8000W | HV-PV10000W | HV-PV12000W |
| Nominal Battery System Voltage | 12/24/48VDC | 12/24/48VDC | 24/48VDC | 48VDC | |||||
| INVERTER OUTPUT | |||||||||
| Rated Power | 1.0KW | 2.0KW | 3.0KW | 4.0KW | 5.0KW | 6.0KW | 8.0KW | 10.0KW | 12.0KW |
| Surge Power | 3000VA | 6000VA | 9000VA | 12000VA | 15000VA | 18000VA | 24000VA | 30000VA | 36000VA |
| Output waveform | Pure sine wave / same as input (bypass mode) | ||||||||
| Inverter Efficiency(Peak) | >88% | ||||||||
| Power factor | 0.9-1.0 | ||||||||
| Nominal output voltage RMS | 100V / 110V / 120VAC / 220V / 230V / 240VAC ±5% (RMS) | 220V / 230V / 240VAC ±5% (RMS) | |||||||
| Output frequency | 50Hz ± 0.3Hz/60Hz ± 0.3Hz | ||||||||
| Typical transfer time | 10ms(max) | ||||||||
| AC INPUT | |||||||||
| Voltage | 100V / 110V / 120VAC / 220V / 230V / 240VAC | 220V / 230V / 240VAC | |||||||
| Selectable Voltage Range | 90-135VAC / 154-264VAC | 154-264VAC | |||||||
| Frequency Range | 50Hz / 60Hz | ||||||||
| BATTERY | |||||||||
| Minimum start voltage | 10.0Vdc / 10.5Vdc for 12Vdc Mode, *2 for 24Vdc, *4 for 48Vdc; | ||||||||
| Low Battery Voltage Alarm | 10.5Vdc / 11.0Vdc for 12Vdc Mode, *2 for 24Vdc, *4 for 48Vdc; | ||||||||
| Low Battery Voltage Cut Off | 10.0Vdc / 10.5Vdc for 12Vdc Mode, *2 for 24Vdc, *4 for 48Vdc; | ||||||||
| High Battery Voltage Alarm | 16.0Vdc for 12Vdc Mode, *2 for 24Vdc, *4 for 48Vdc; | ||||||||
| High Battery Voltage Recover | 15.5Vdc for 12Vdc Mode, *2 for 24Vdc, *4 for 48Vdc; | ||||||||
| SOLAR CHARGER & AC CHARGER (Optional) | |||||||||
| Maximum Solar Charge Current (Optional) | 30A | 50A | 60A | 60A | 60A | 60A | 100A | 100A | 100A |
| Battery Voltage | 12/24Vdc | 12/24/48Vdc | 24/48Vdc | 48Vdc | |||||
| Maximum Solar Input Voltage | 100V | 150V | 150V | 150V | 150V | 150V | 230V | 230V | 230V |
| Maximum AC Charge Current | According to Manuel | ||||||||
| MECHANICAL SPECIFICATIONS | |||||||||
| Mounting | Vertical Type | ||||||||
| Machine Dimension (W*H*D) | / | 485*300*720mm | |||||||
| Package Dimension (W*H*D) | / | 550*320*820mm | |||||||
| N.W (kg) | / | 64.5 | 66.5 | 68 | |||||
| G.W (kg) | / | 73 | 75 | 76.5 | |||||
| OTHER | |||||||||
| Operating Temperature Range | -10°C to 40°C | ||||||||
| Storage Temperature | -15°C to 60°C | ||||||||
| Display | LED+LCD | ||||||||
| Warranty | 2 year | ||||||||
| Loading(20GP/40GP/40HQ) | / | 187pcs / 387pcs / 453pcs | |||||||
Significant Cost Savings: 3-5% higher efficiencyIndustrial-Grade Protection: Relay + circuit breakers with multi-protectionClear System Monitoring： LCD+LED Dual Display, WIFI/4G remote controlPure Sine Wave & Isolated DesignHigh-Efficiency Solar Controller: Built-inAdvanced Remote Management (Optional): RJ11/RJ45/RS232/485
