Robust & Modern DesignClear System Display: LCD+LEDIndustry-Leading Longevity: 6000+ cyclesAdvanced Remote Management (Optional):CAN/RS232/RS485Integrated WiFi BMS with LCD for real-time monitoring and controlldeal Applications: Optimized for residential solar, mobile power stations etc
Product Description
The LFP-S Series LiFePO4 Battery System is designed for residential solar installations and mobile power needs that require scalable energy storage. It supports load shifting and backup power with modular expansion options, addressing the demands of distributed energy storage in homes or portable applications. Its design suits procurement considerations for system integrators and OEM buyers requiring flexible capacity configurations.
This lifepo4 solar battery features a 5.12kWh capacity at 48V nominal voltage and sustains over 6000 charge cycles. The IP65-rated enclosure ensures protection against dust and water, suitable for various environments. Integrated communication protocols including CAN, RS232, RS485, and WiFi BMS allow for remote monitoring and control. The battery system’s LCD and LED display provide real-time status updates supporting operational oversight.

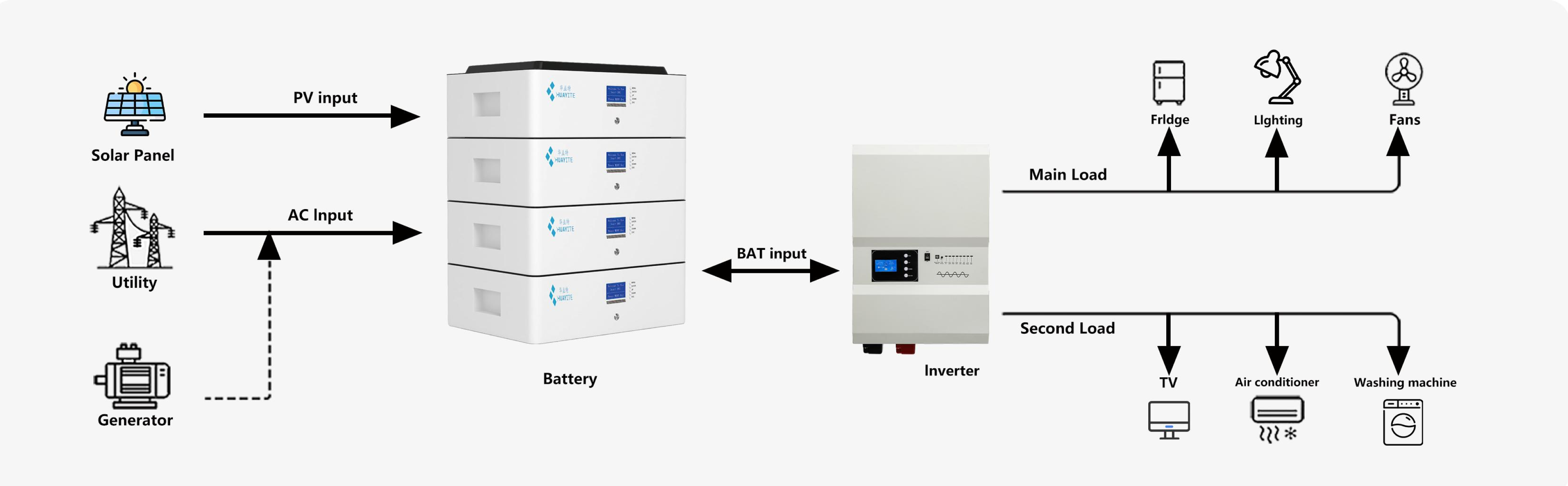

Suitable for off-grid or grid-tied residential setups and mobile power stations, this solar battery storage system can be integrated with hybrid inverters and managed remotely. Its modular compatibility allows commercial buyers and distributors to tailor solutions to project requirements. The system’s robust operational temperature range and safety features support reliable service in diverse climatic conditions.

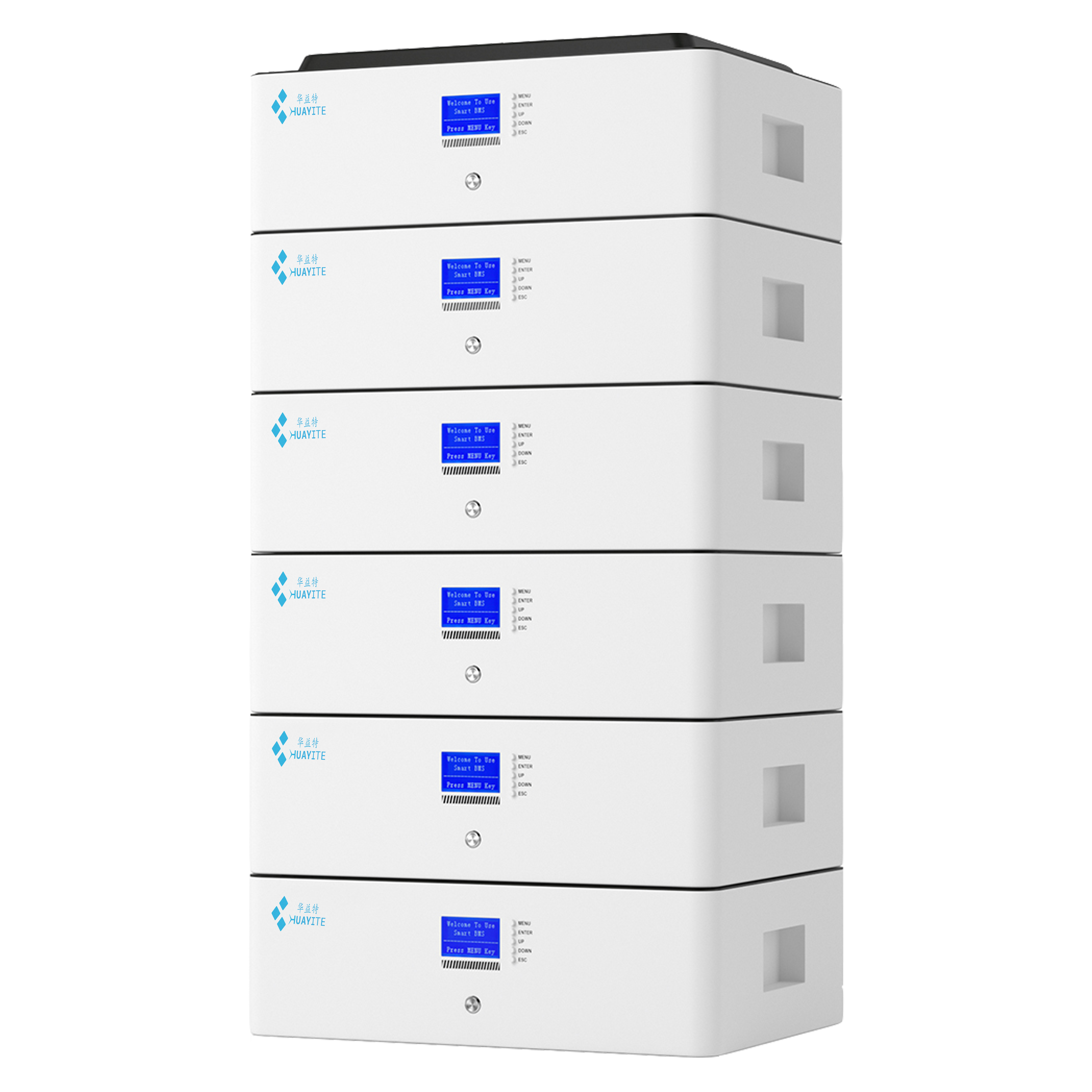

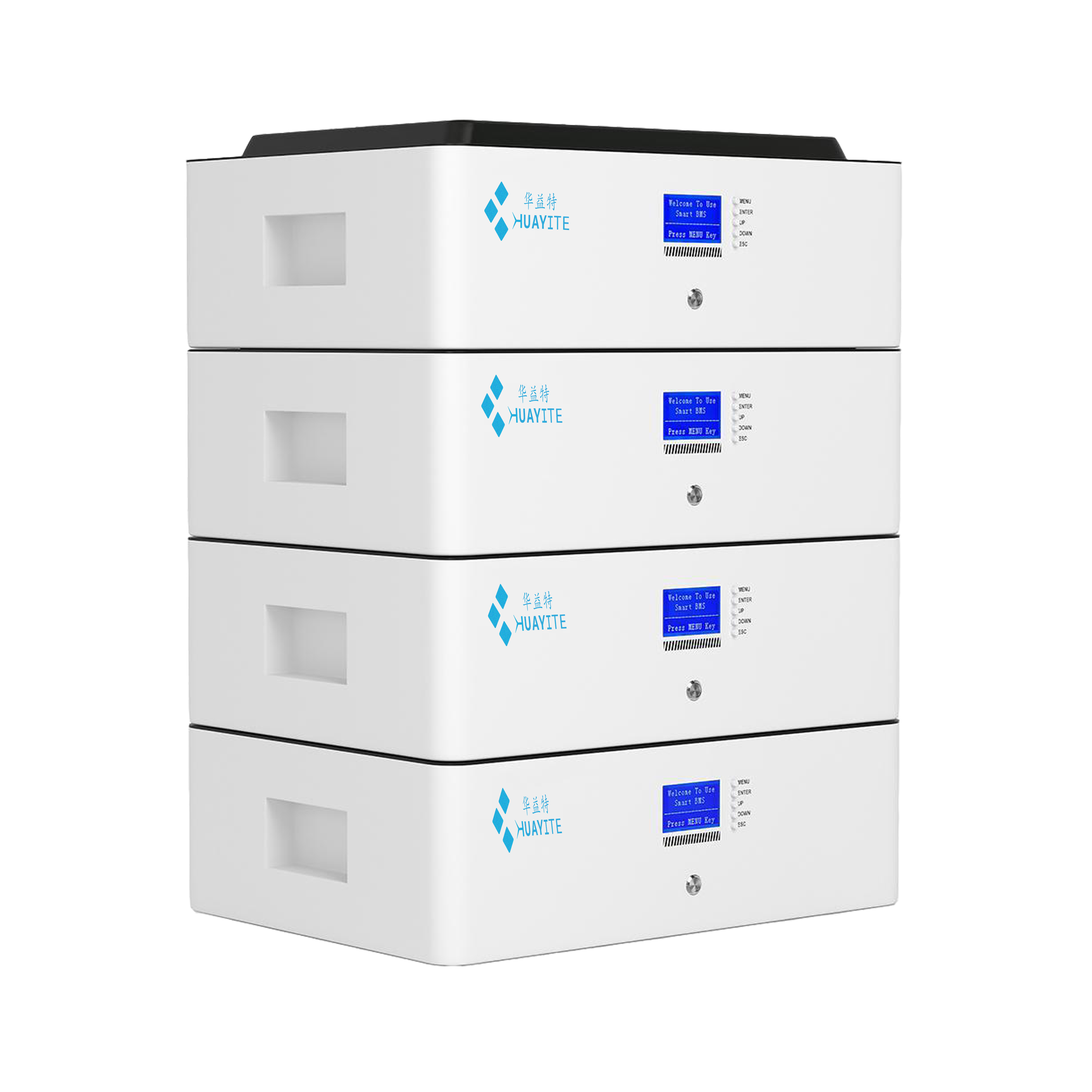

The modular rack-compatible design facilitates scalability and ease of system expansion, simplifying inventory and deployment decisions for distributors and OEMs. The inclusion of multiple communication protocols supports integration flexibility with existing solar battery storage solutions lifepo4 systems. Compliance with IP65 standards supports a wider range of deployment environments.
The integrated Battery Management System with WiFi and LCD display enhances remote operational control, a key factor for project managers requiring continuous system monitoring. The battery’s documented long cycle life contributes to lifecycle cost management. Packaging and dimensions are suitable for structured transport and installation procedures common in commercial supply chains.
| MODEL | HET-S5000 | |
| Electrical Characteristics |
Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah(C5,25℃) | |
| Energy | 5.12kWh | |
| nternal Resistance | ≤30mΩ | |
| Cycle Life | >6000 cycles | |
| Months Self Discharge | <3% | |
| Efficiency of Charge | 100%@0.2C | |
| Efficiency of Discharge | 96~99%@1C | |
| Standard Charge | Charge Voltage | 58.4±0.2V |
| Charge Mode | 0.2C to 58.4V,then 58.4,charge current 0.02C(CC/CV) | |
| Charger Current | 50A | |
| Max.Charge Current | 100A | |
| Charge Cut-off Voltage | 58.4V±0 | |
| Standard Discharge | Continuous Current | 100A |
| Max.Pulse Current | 300A(<3s) | |
| Discharge Cut-off Voltage | 40V | |
| Environmental | Charge Temperature | 0℃ to 45℃(32F to 113F)@60±25%Relative Humidity |
| Discharge Temperature | -20℃ to 60C(-4F to 140F)@60±25%Relative Humidity | |
| Storage Temperature | 0℃ to 40℃(32F to 104F)@60±25%Relative Humidity | |
| Water Dust Resistance | IP65 | |
| Mechanical | Cell &Method | 3.2V100AH-16S |
| Plastic Case | standard case | |
| Dimensions(in./mm.) | 635*400*192MM | |
| Weight (Ilbs./kg.) | 46.3Kg | |
| Terminal | Energy storage connector | |
| Protocol(optional) | RS485/CAN | |
| BMS | 16S100A | |
Robust &Modern Design.Clear System Display:LCD+LED.Industry-Leading Longevity:6000+cycles.Advanced Remote Management(Optional):CAN/RS232/RS485.Integrated WiFi BMS with LCD for real-time monitoring and control.Ideal Applications:Optimized for residential solar,mobile power stations etc.
