Robust & Modern DesignClear System Display: LCD+LEDIndustry-Leading Longevity: 6000+ cyclesAdvanced Remote Management (Optional): CAN/RS232/RS485Integrated WiFi BMS with LCD for real-time monitoring and controlIdeal Applications: Optimized for residential solar, mobile power stations etc
Product Description

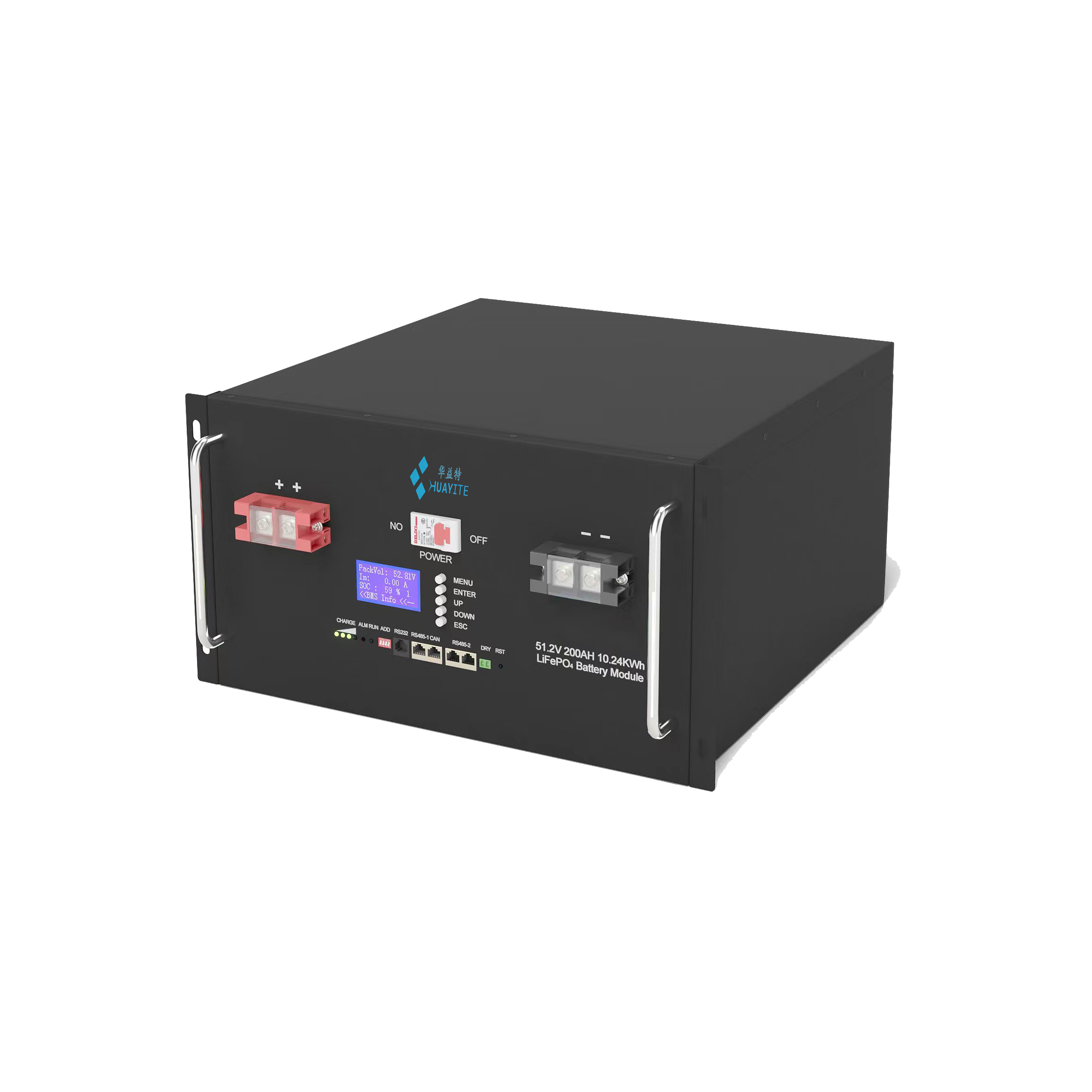

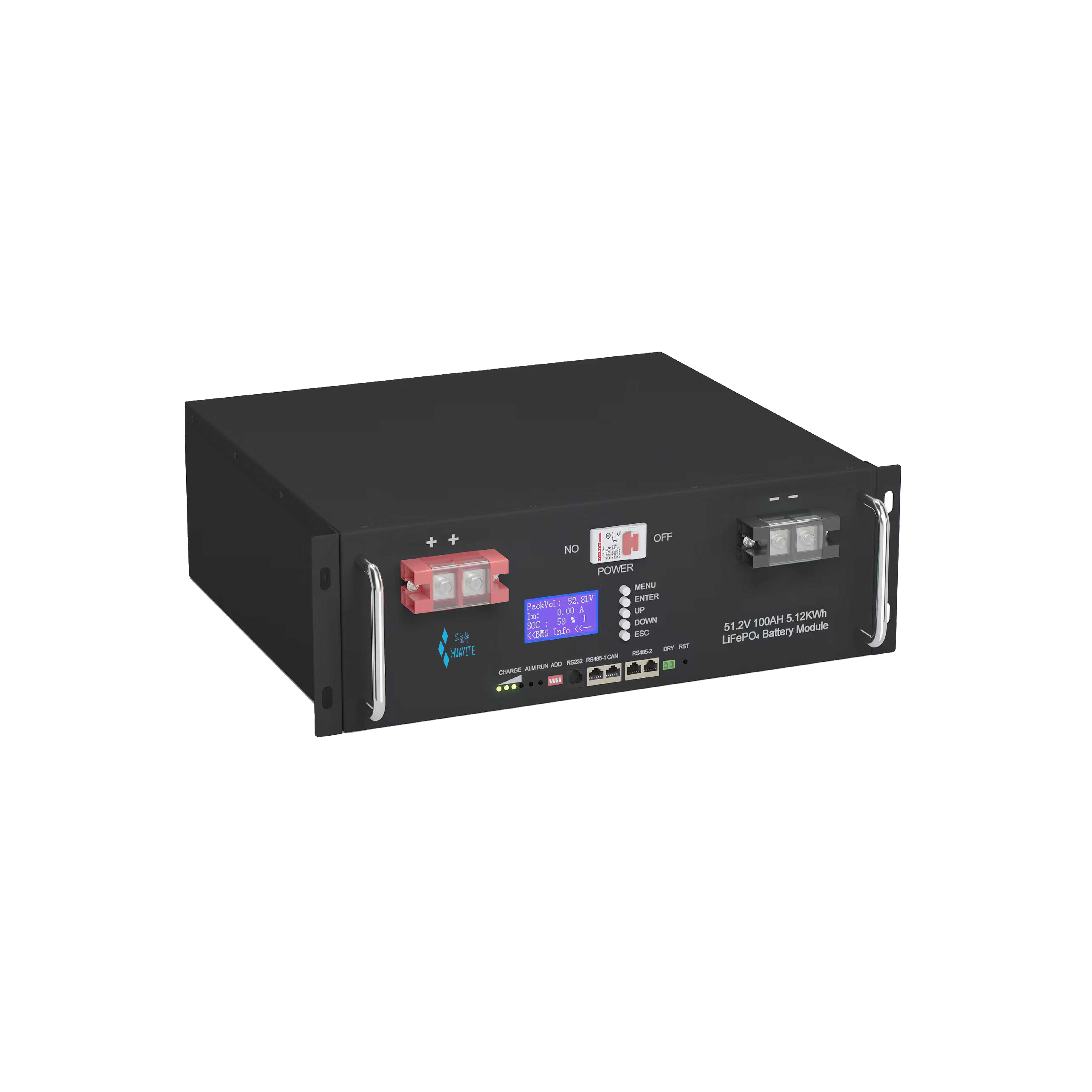

The LFP-R Series lifepo4 solar battery provides modular, rack-mounted battery storage designed for residential, commercial, and mobile power applications. It targets energy projects requiring scalable and safe energy storage that can integrate with solar battery storage system setups, commercial backup power, or off-grid configurations. Procurement professionals will note its suitability for projects emphasizing long cycle life and remote management capability.
This solar battery storage system features nominal voltages of 51.2 V and capacities of either 5.12kWh or 10.24kWh. The design supports over 6000 cycles, with integrated WiFi-enabled BMS and optional remote management via CAN, RS232, and RS485 protocols. Its modular rack-mounted layout facilitates scalable lifepo4 battery bank deployment with clear LCD+LED monitoring and operation in various environmental conditions, offering IP20-rated housing.

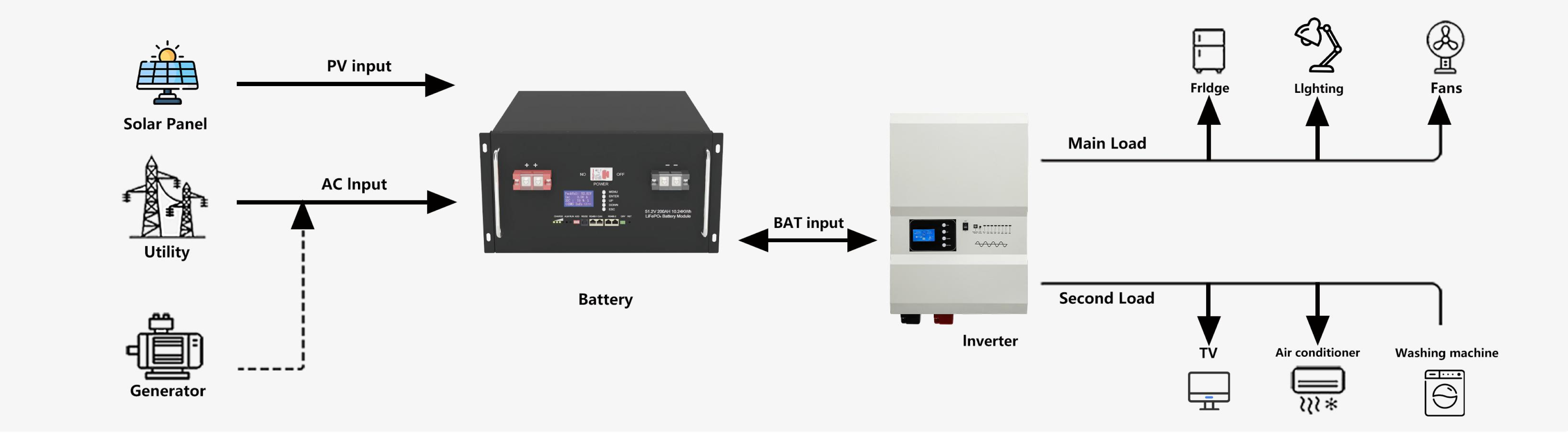

Suitable for integration with hybrid inverter systems, the LFP-R Series offers practical solar battery solutions lifepo4 for residential solar energy backup, commercial critical loads, and mobile power stations. Its rack-mounted form factor and remote monitoring capabilities simplify system expansion and control in energy projects where modular energy storage is required. These characteristics support deployment in distributed energy resources and off-grid solar battery storage system implementations.
The system’s rack-mounted modular design supports flexible capacity scaling and installation efficiency. Its compatibility with standard communication protocols and integrated WiFi BMS facilitates diverse monitoring and control configurations valuable in OEM/ODM projects or custom solar battery solutions lifepo4. The IP20 enclosure and standardized form factor are practical features relevant for bulk sourcing and adaptable system designs.
Operationally, the product’s 6000+ cycle life and wide operating temperature range support sustained performance in varied commercial and residential environments. Clear status displays and remote management options provide functionality that aids monitoring in distributed solar battery storage system deployments. The product is suitable for distributors and integrators requiring dependable lifepo4 battery bank components with documented specifications.
| MODEL | LFP-R 51.2V 100AH | LFP-R 51.2V 200AH | |
| Electrical Characteristics |
Nominal Voltage | 51.2V | 51.2V |
| Nominal Capacity | 100Ah(C5,25℃) | 200Ah(C5,25℃) | |
| Energy | 5.12kWh | 10.24kWh | |
| nternal Resistance | ≤50mΩ | ||
| Cycle Life | >3000 cycles | ||
| Months Self Discharge | <3% | ||
| Efficiency of Charge | 100%@0.2C | ||
| Efficiency of Discharge | 96~99%@1C | ||
| Standard Charge | Charge Voltage | 58.4±0.2V | |
| Charge Mode | 0.2C to 58.4V,then 58.4,charge current 0.02C(CC/CV) | ||
| Charger Current | 25A | 50A | |
| Max.Charge Current | 50A | 75A | |
| Charge Cut-off Voltage | 58.4V±0 | ||
| Standard Discharge | Continuous Current | 100A | |
| Max.Pulse Current | 150A(<3s) | 200A(<3s) | |
| Discharge Cut-off Voltage | 40V | ||
| Environmental | Charge Temperature | 0℃ to 45℃(32F to 113F)@60±25%Relative Humidity | |
| Discharge Temperature | -20℃ to 60C(-4F to 140F)@60±25%Relative Humidity | ||
| Storage Temperature | 0℃ to 40℃(32F to 104F)@60±25%Relative Humidity | ||
| Water Dust Resistance | IP20 | ||
| Mechanical | Cell &Method | 3.2V100AH-16S | 3.2V200AH-16S |
| Plastic Case | standard case | standard case | |
| Dimensions(in./mm.) | 570*360*140MM | 860*540*140MM | |
| Weight (Ilbs./kg.) | 47Kg | 90Kg | |
| Terminal | Energy storage connector | ||
| Protocol(optional) | RS485/CAN | ||
| BMS | 16S100A | ||
Robust &Modern Design.Clear System Display:LCD+LED.Industry-Leading Longevity:6000+cycles.Advanced Remote Management(Optional):CAN/RS232/RS485.Integrated WiFi BMS with LCD for real-time monitoring and control.Ideal Applications:Optimized for residential solar,mobile power stations etc.
