Robust & Modern DesignClear System Display: LCD+LEDIndustry-Leading Longevity: 6000+ cyclesAdvanced Remote Management (Optional): CAN/RS232/RS485Integrated WiFi BMS with LCD for real-time monitoring and controlIdeal Applications: Optimized for residential solar, mobile power stations etc
Product Description

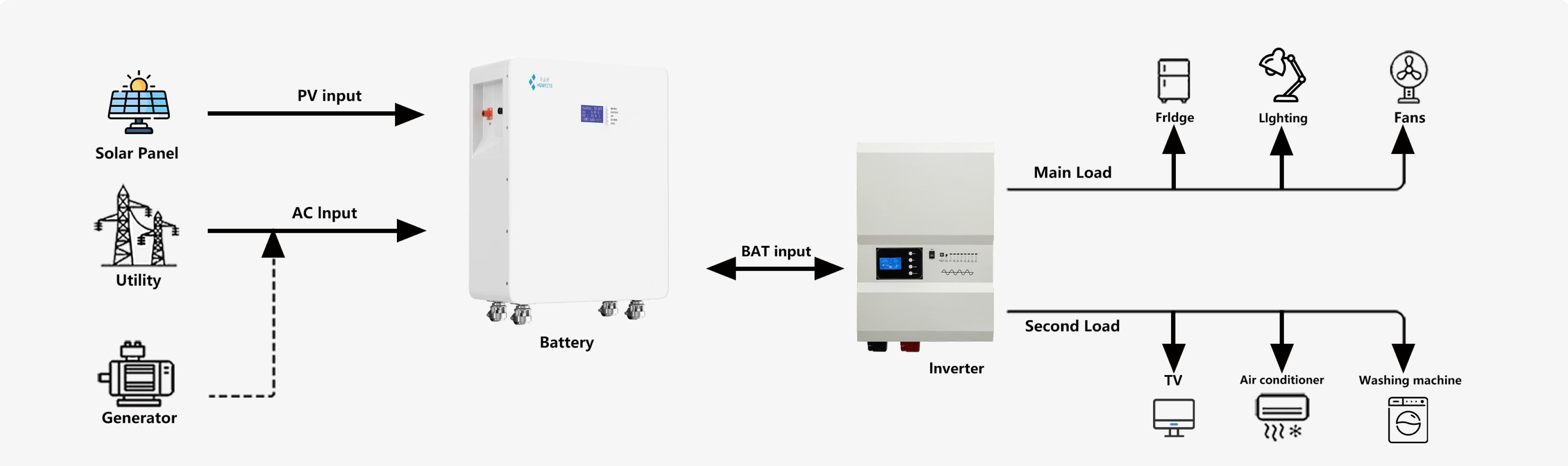

The LFP-F Series LiFePO4 battery system is designed as a flexible energy storage solution targeting residential solar systems, mobile power stations, and small commercial installations. Its scalable capacity supports evolving energy demands, making it relevant for users seeking reliable storage integration within hybrid inverter environments.
This solar battery storage system operates at a nominal voltage of 51.2V with capacities ranging from 200Ah to 400Ah. It is rated for over 6000 charge-discharge cycles and includes an integrated WiFi BMS featuring LCD and LED displays for real-time monitoring. The IP30 rating indicates suitability for protected indoor environments, while modular rack compatibility supports expandability for larger battery banks.

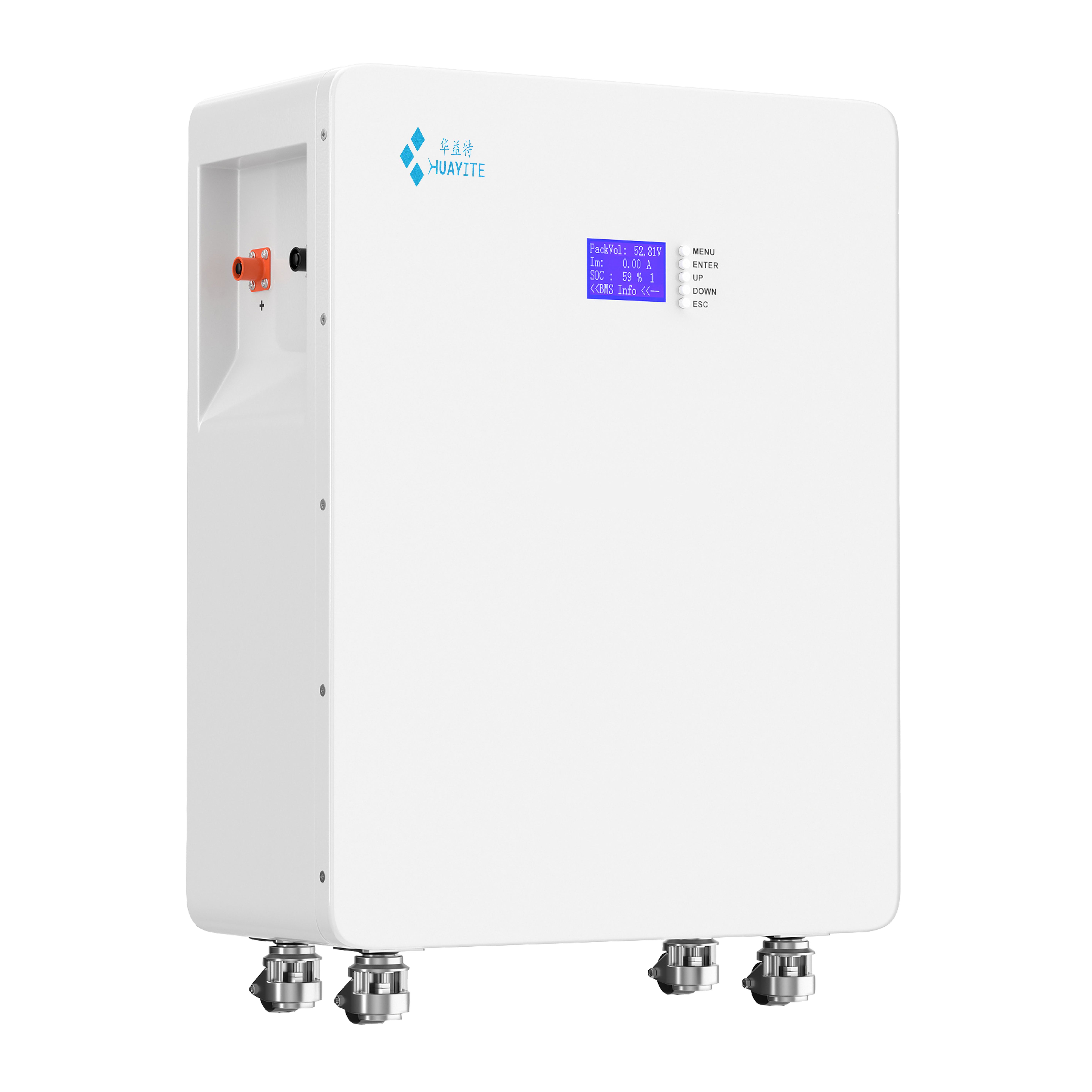

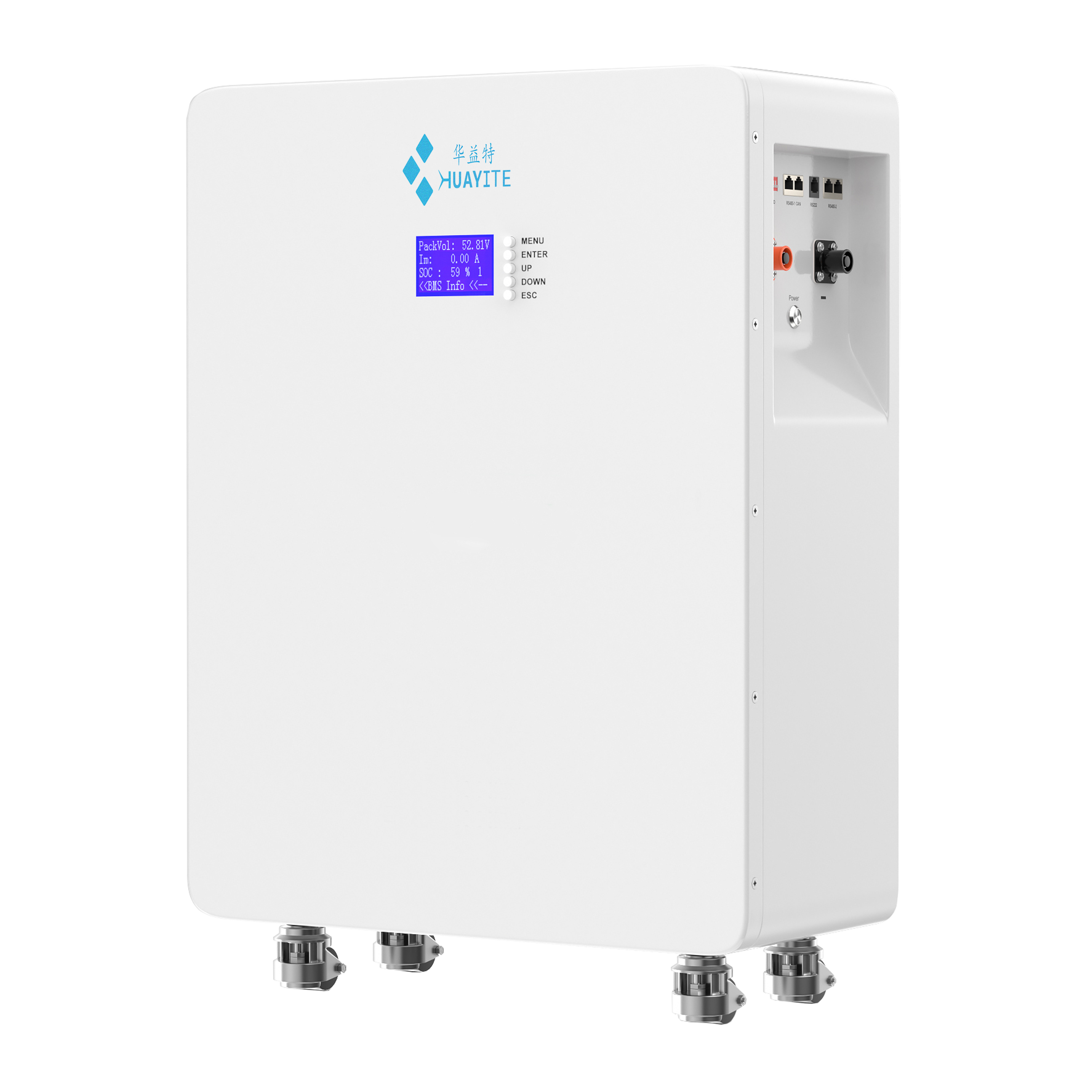

With a floor-standing design and wheels for mobility, the system suits installations requiring flexible placement and occasional repositioning. Its advanced remote management options through various communication protocols allow integration into smart energy systems. The LFP-F battery adapts to residential and light commercial energy storage needs where safety and durability are important.
This solar battery system supports customization of terminal types (screw or custom), enabling alignment with diverse installation requirements. Its modular scalable capacity facilitates ordering based on current project needs while allowing straightforward expansion. The integrated battery management system contributes to quality control and system monitoring, relevant to operational oversight and maintenance planning.
The LFP-F Series’ design life of 15 years and extensive cycle life characteristic position it as a candidate for long-term energy projects. The floor-standing form factor with wheels enhances handling during installation and replacement, improving logistics in commercial contexts. Remote management capabilities and modular compatibility make it adaptable for OEM product integration or tailored solar battery storage solutions lifepo4.
| MODEL | HET-F48200 | HET-F48300 | HET-F48400 | |
| Electrical Characteristics |
Nominal Voltage | 51.2V | 51.2V | 51.2V |
| Nominal Capacity | 200Ah(C5,25℃) | 300Ah(C5,25℃) | 400Ah(C5,25℃) | |
| Energy | 10.24kWh | 15.36kWh | 20.48kWh | |
| nternal Resistance | ≤50mΩ | |||
| Cycle Life | >3000 cycles | |||
| Months Self Discharge | <3% | |||
| Efficiency of Charge | 100%@0.2C | |||
| Efficiency of Discharge | 96~99%@1C | |||
| Standard Charge | Charge Voltage | 58.4±0.2V | ||
| Charge Mode | 0.2C to 58.4V,then 58.4,charge current 0.02C(CC/CV) | |||
| Max.Charge Current | 50A | |||
| Charge Cut-off Voltage | 58.4V±0 | |||
| Standard Discharge | Continuous Current | 100A | ||
| Environmental | Charge Temperature | 0℃ to 45℃(32F to 113F)@60±25%Relative Humidity | ||
| Discharge Temperature | -20℃ to 60C(-4F to 140F)@60±25%Relative Humidity | |||
| Storage Temperature | 0℃ to 40℃(32F to 104F)@60±25%Relative Humidity | |||
| Water Dust Resistance | IP30 | |||
| Mechanical | Cell &Method | 3.2V200AH-16S | 3.2V300AH-16S | 3.2V400AH-16S |
| Installation | Floor standing | Floor standing | Floor standing | |
| Dimensions(in./mm.) | 680*530*250MM | 500*360*670MM | 500*360*670MM | |
| Weight (Ilbs./kg.) | 120Kg | 150Kg | 190Kg | |
| Terminal | Screw or Custom | |||
| Protocol(optional) | RS485/CAN | |||
| Design Life | 15 years | |||
Robust &Modern Design.Clear System Display:LCD+LED.Industry-Leading Longevity:6000+cycles.Advanced Remote Management(Optional):CAN/RS232/RS485.Integrated WiFi BMS with LCD for real-time monitoring and control.Ideal Applications:Optimized for residential solar,mobile power stations etc.
