Real-time system diagnostics and performance tracking via WiFi/APP. High-efficiency built-in charging reduces installation complexity and costs. Compatible with diverse solar arrays for maximum energy harvest globally. Ensures uninterrupted power supply with automatic grid/generator switching. Plug-and-play compatibility for LiFePO4 systems with extended lifespan optimization.
Product Description

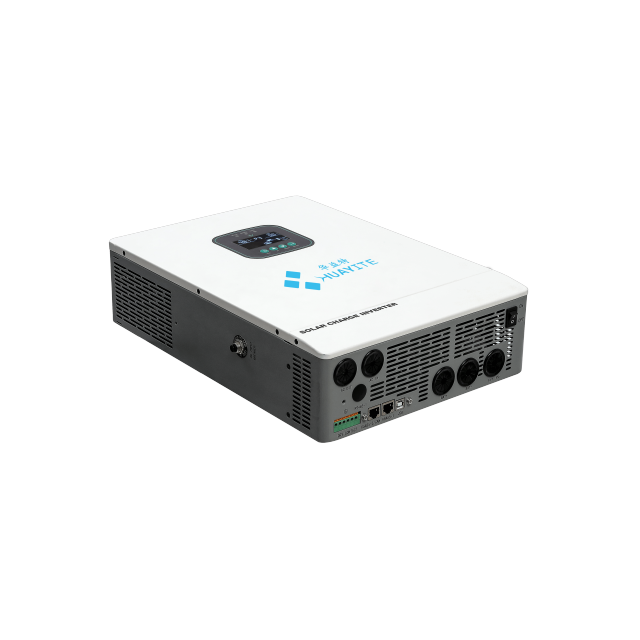

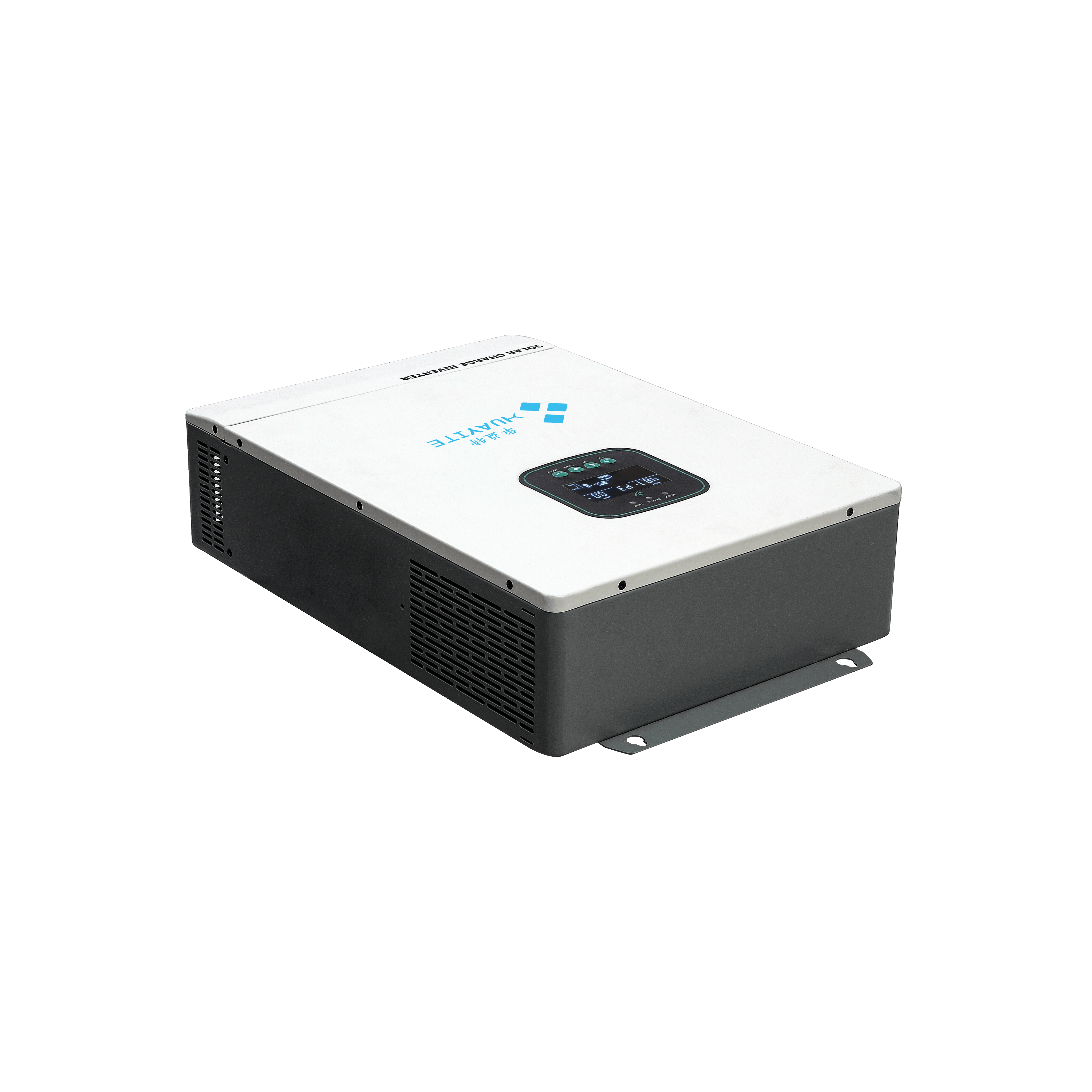

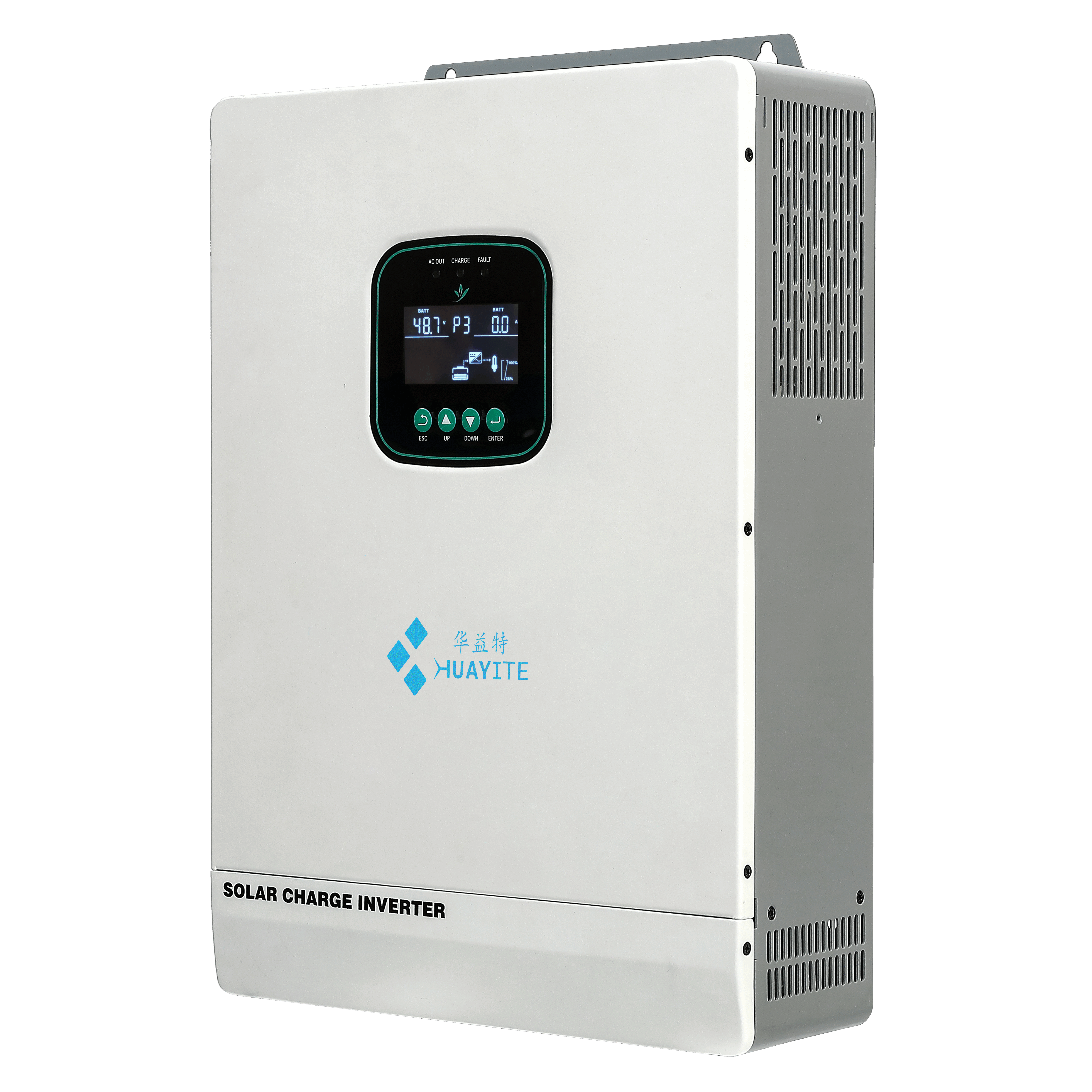

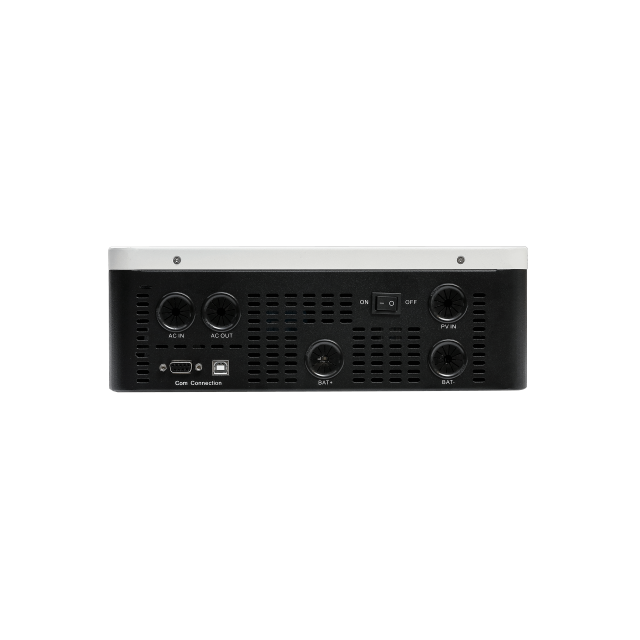

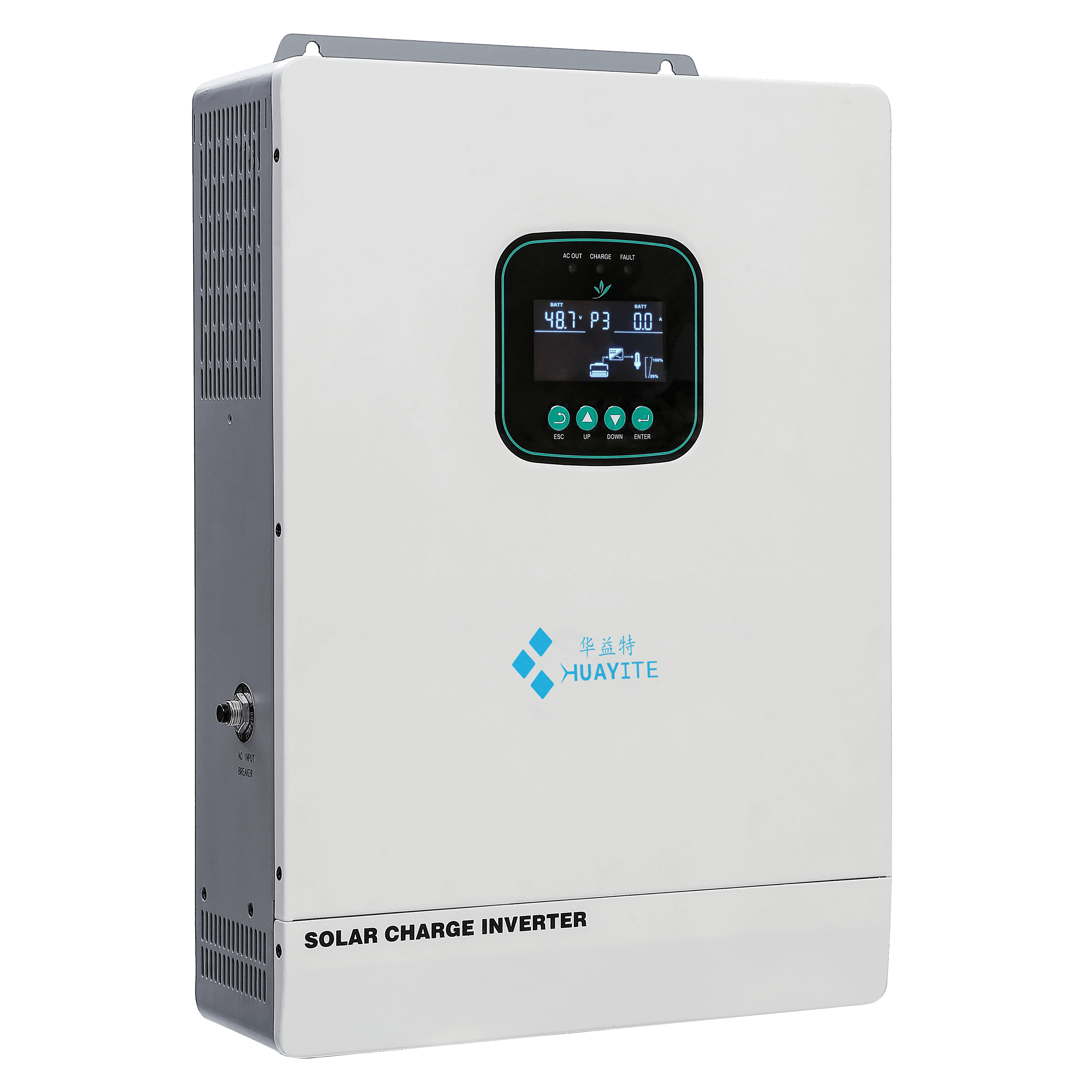

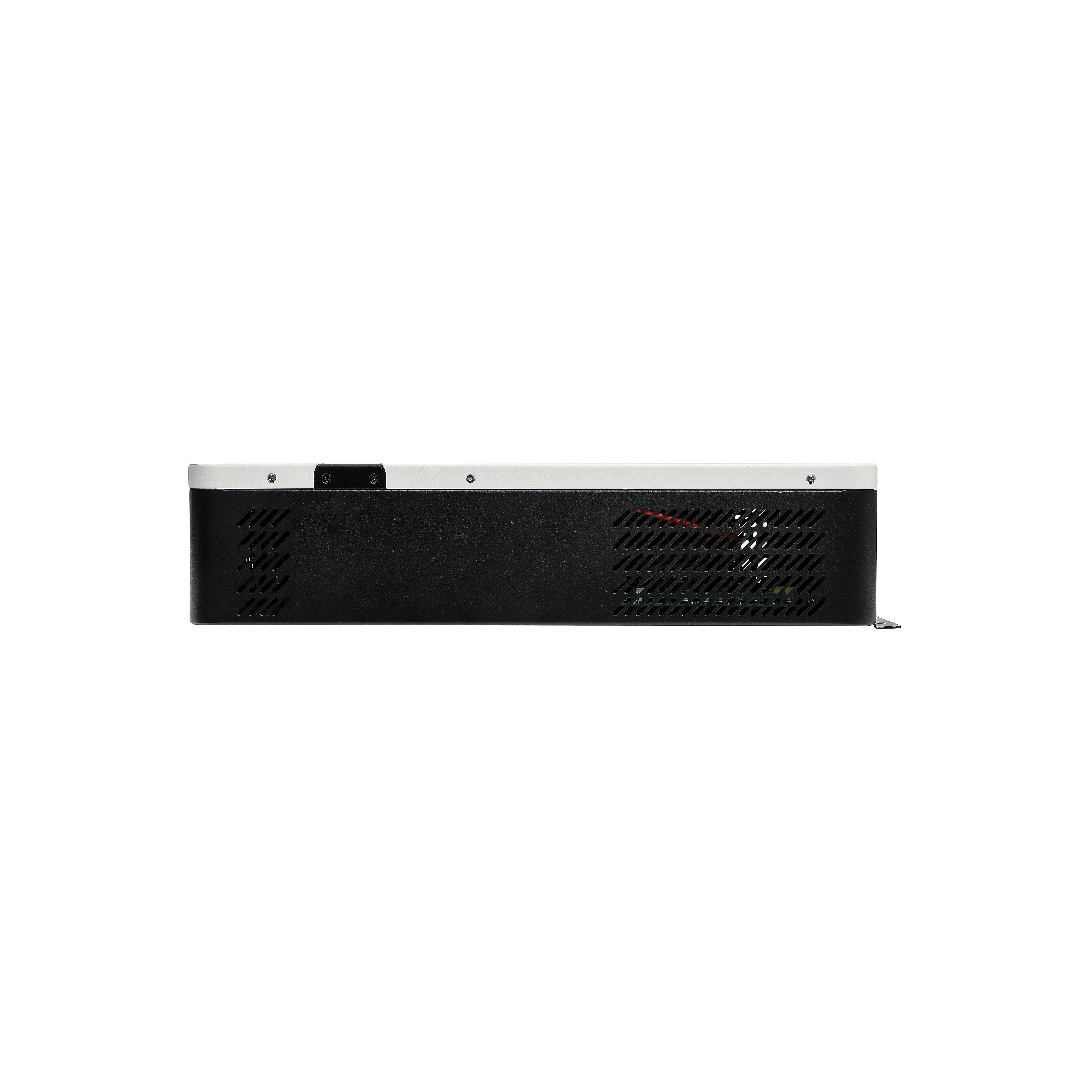

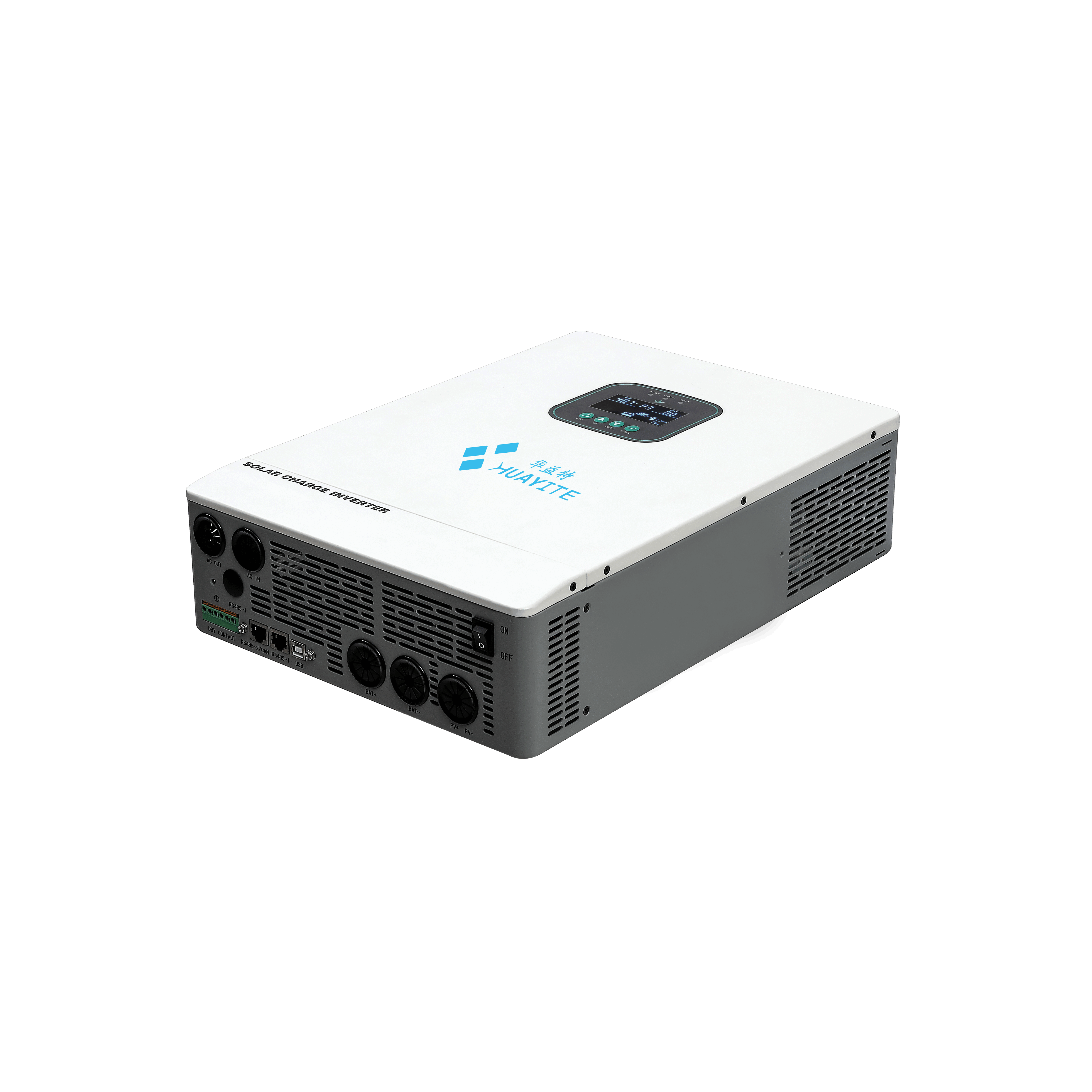

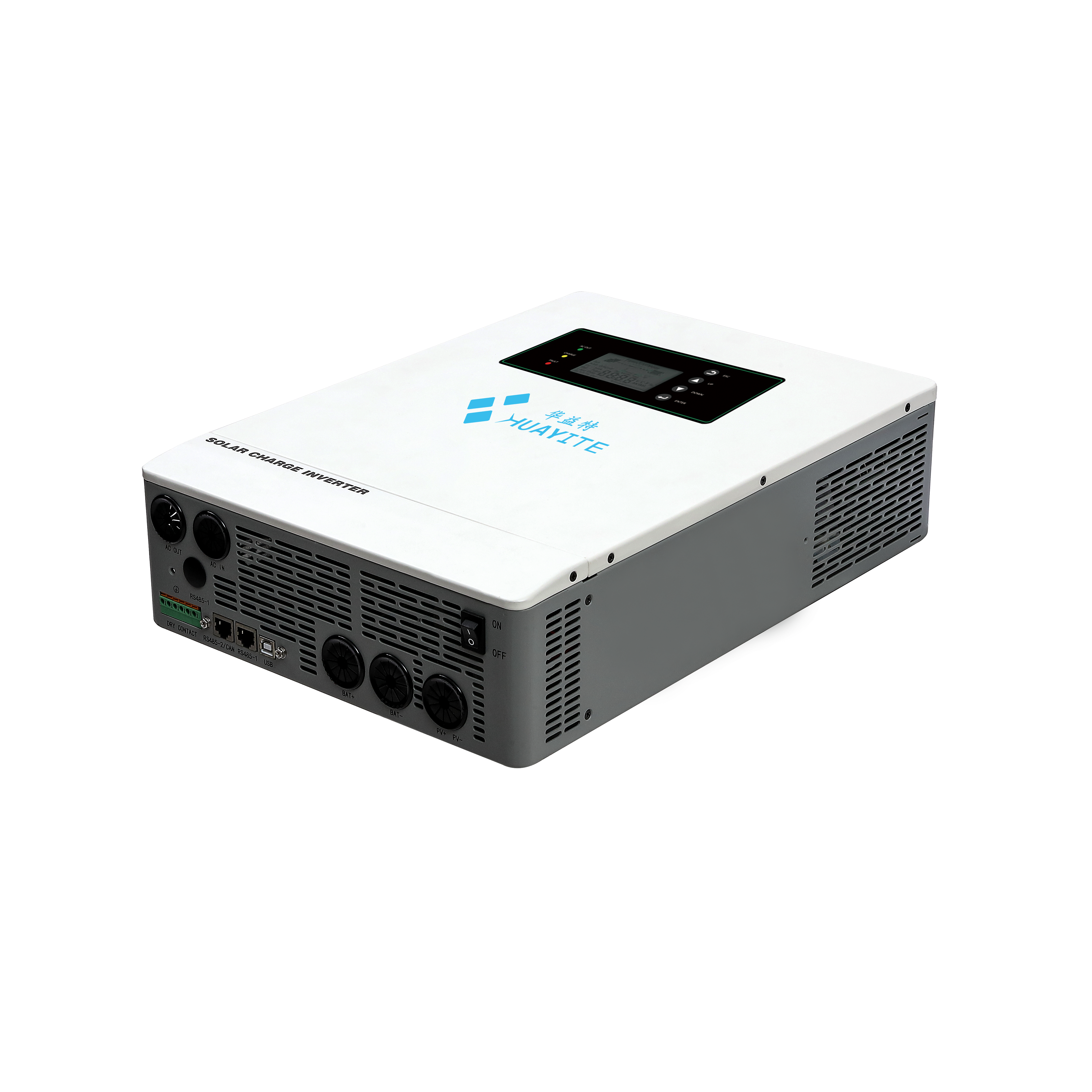

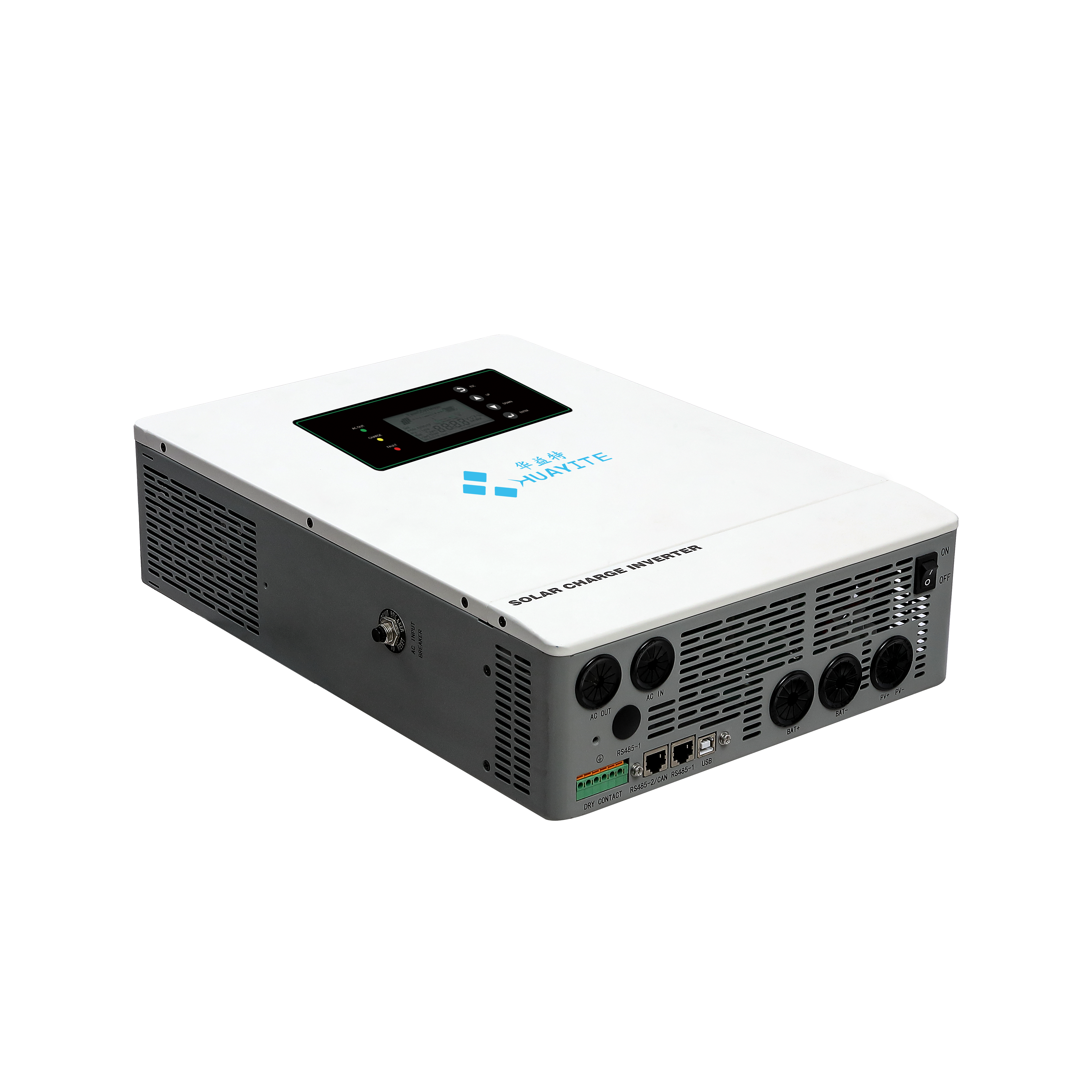

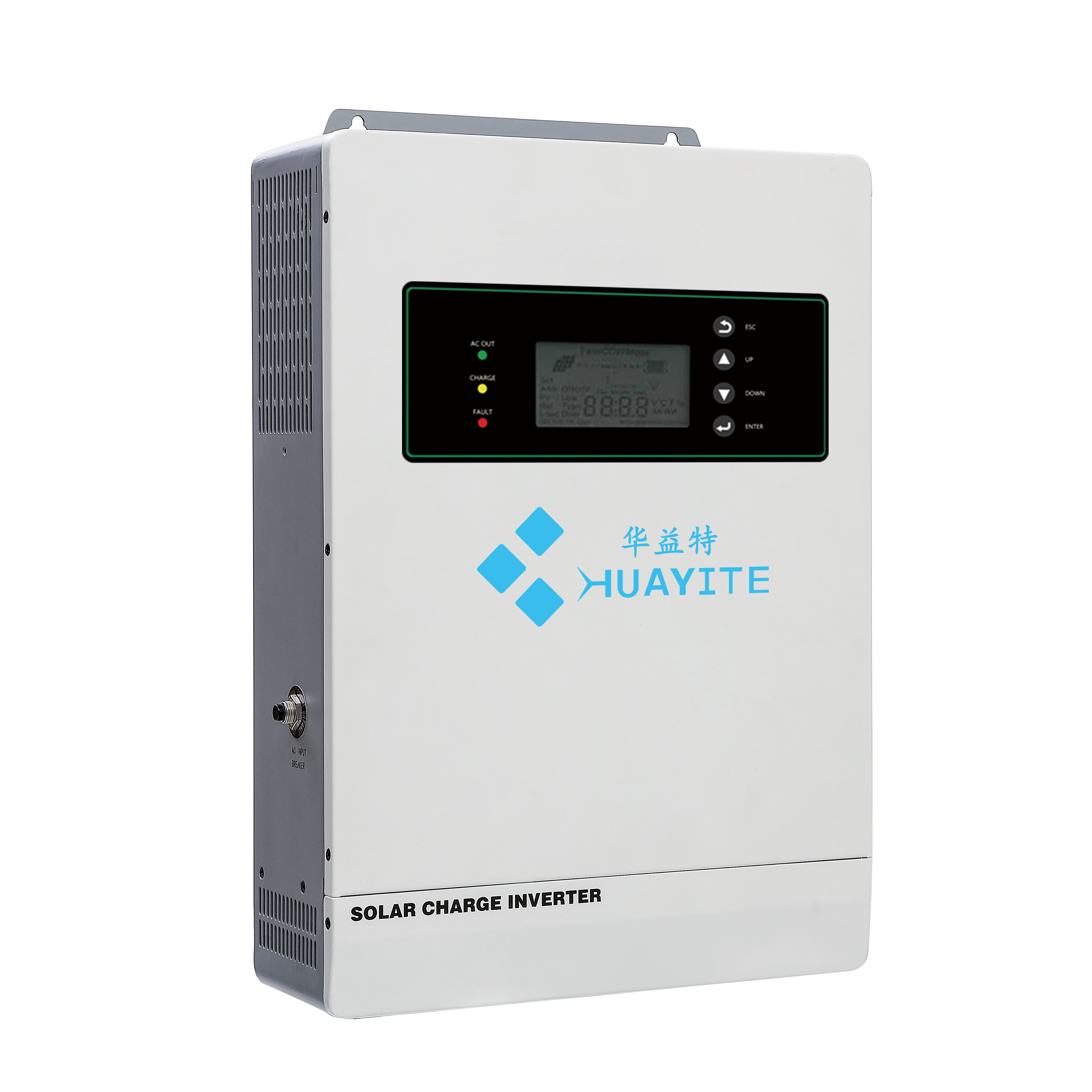

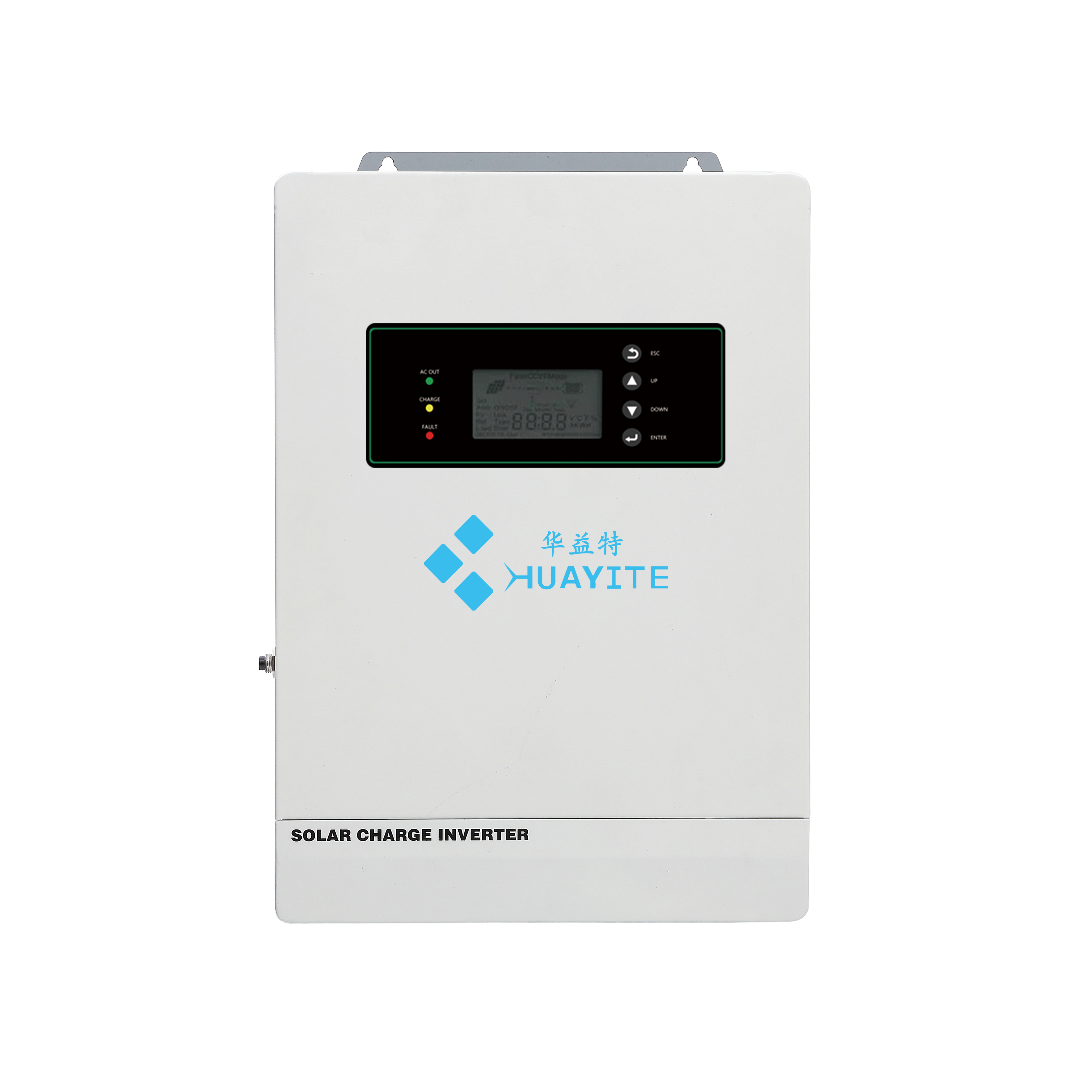

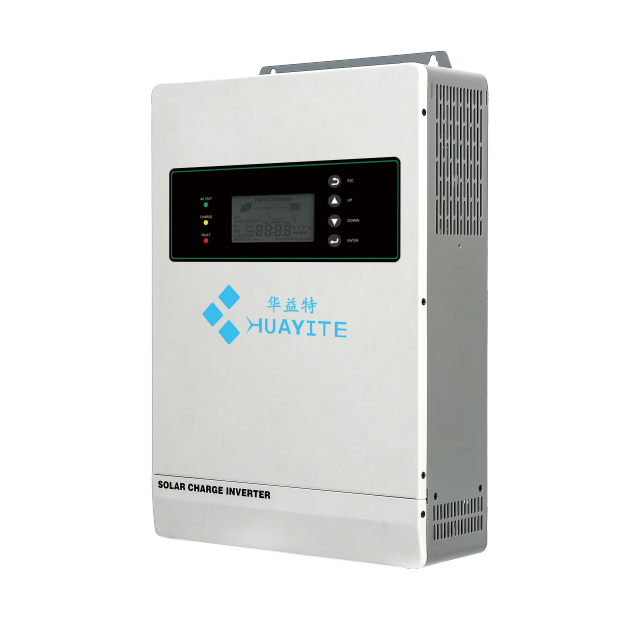

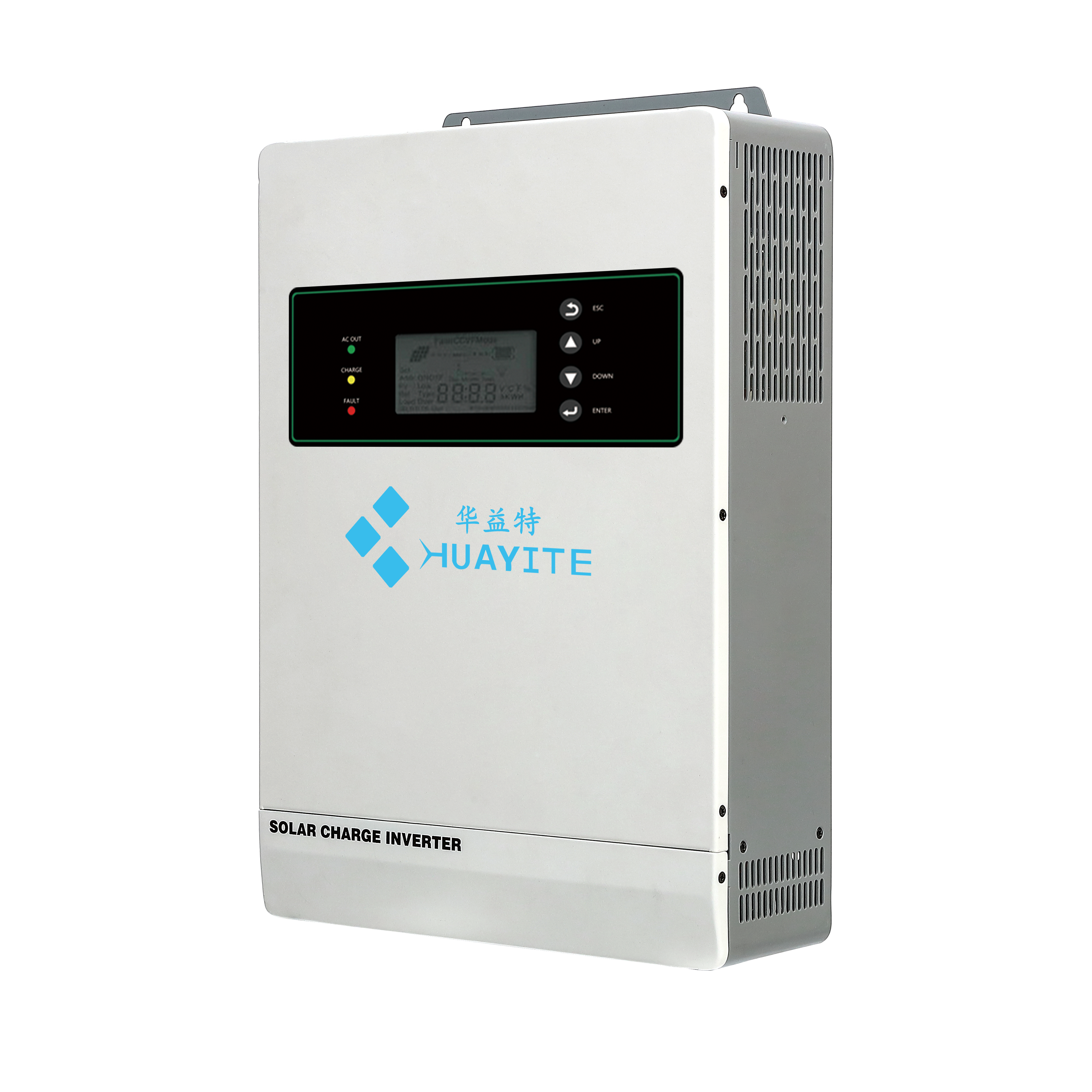

The HB-PV Series hybrid solar inverter integrates a 100A MPPT charge controller, AC charger, and pure sine wave inverter to deliver efficient solar power conversion and battery management in one system. It targets residential, commercial, and off-grid applications requiring reliable power supply and scalable solar solutions. This product suits procurement for solar power inverter manufacturers and suppliers aiming to simplify installation and optimize energy capture.
Featuring a high-frequency pure sine wave inverter design, the system delivers up to 96% full-load efficiency with low standby power consumption under 2%. It supports a wide MPPT voltage range (40-500V) compatible with various solar arrays and includes automatic switching between grid and generator inputs for continuous power. Models cover nominal battery voltages of 24V and 48V with parallel operation capacity up to nine units for expanded power. Integration with LiFePO4 batteries is plug-and-play, supporting longevity.
Suitable for diverse solar projects, the inverter is practical for system expansions in small commercial setups, residential installations, and off-grid environments. Its real-time monitoring via WiFi and app enables ongoing performance management, while the pure sine wave output ensures stable and clean power delivery. The product fits procurement demands for power inverter manufacturer portfolios requiring scalable and modular solar inverter solutions.
The consolidated design combining inverter, MPPT charge controller, and AC charger reduces component count and installation complexity, potentially lowering logistical and assembly costs for distributors and OEM/ODM buyers. Warranty and quality inspection details were not provided, but the integration simplifies sourcing by reducing part variability. Inclusion of plug-and-play LiFePO4 battery support can be advantageous for customers focusing on lithium-based energy storage systems.
The product’s parallel operation capability allows scalability, which may appeal to project developers and commercial operators needing flexible system sizing. The wide input voltage range enhances compatibility with diverse solar arrays, supporting global deployment. Although exact certifications are not listed, the system features standard AC voltage and frequency options that align with typical grid requirements, aiding compliance evaluation by power inverter supplier networks.
|
Model |
HB-PV3K-24 |
HB-PV5K-48（up to 9 pieces in parallel operation） |
|
Nominal Battery System Voltage |
24VDC |
48VDC |
|
Inverter Output |
||
|
Rated Power |
3600W |
5600W |
|
Surge Rating |
7200W |
11200W |
|
Waveform |
Pure sine wave (grid or generator) |
|
|
Output Voltage |
100/110/120/220/230/240VAC |
|
|
Output Frequency |
50Hz / 60Hz ±0.3Hz |
|
|
Batter Mode Efficiency (Peak) |
> 92% |
|
|
Line Mode Efficiency |
> 95% |
|
|
Power Factor |
1.0 |
|
|
Typical Transfer Time |
10ms(max) |
|
|
AC Input |
||
|
Voltage |
100/110/120/220/230/240VAC |
|
|
Frequency Range |
50Hz / 60Hz(Auto sensing) 40~80Hz |
|
|
Built-in Charger |
||
|
Type |
MPPT |
|
|
Capacity |
100A |
|
|
MPPT Operation Range(Vmp) |
40-450V |
120-450V |
|
Max Open Circuit Voltage(Voc) |
500V |
|
|
Max PV Input Power |
18A 5000W |
18A 6000W |
|
Mechanical Specifications |
||
|
Inverter Dimensions(W*H*D) |
465*300*115mm |
|
|
Package Dimensions(W*H*D) |
515*365*180mm |
|
|
Inverter Weight |
7kgs |
7kgs |
|
Package Weight |
9.05kgs |
9.7kgs |
Integrated 100A Solar Charger: High-efficiency built-in charging reduces installation complexity and costs. Broad MPPT Range (40-500V): Compatible with diverse solar arrays for maximum energy harvest globally. Seamless Generator Integration: Ensures uninterrupted power supply with automatic grid/generator switching. Auto Lithium Battery Activation: Plug-and-play compatibility for LiFePO4 systems with extended lifespan optimization. Cloud-Based Remote Monitorin: Real-time system diagnostics and performance tracking via WiFi/APP.
Key Advantages for Resellers:
✔ Higher Margins - Premium hybrid features justify tiered pricing strategies.
✔ Lower Support Costs - Simplified installation minimizes technical queries.
✔ Universal Compatibility - Adapts to 90%+ solar configurations and battery types.
✔ Future-Proof Tech - IoT-enabled platform supports smart energy management trends.
